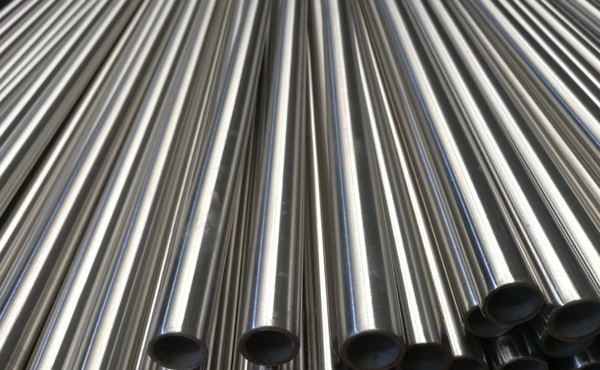

SEAMLESS PIPE Inconel 625/ UNS N06625/DIN W. Nr. 2.4856

Inconel 625/ UNS N06625/DIN W. Nr. 2.4856

Form	ASTM
Rod and bar	B 446
Plate, sheet and strip	B 443, B 906
Seamless pipe and tube	B 444, B 829
Welded pipe	B 705, B 775
Welded tube	B 704, B 751
Welding fitting	B 366
Billet and bar for reforging	B 472
Forging	B 564

Chemical composition

%	Ni	Cr	Mo	Fe	C	Mn	Si	P	S	Co	Nb+Ta	Al	Ti
min	58.0	20.0	8.0								3.15
max		23.0	10.0	5.0	0.10	0.50	0.50	0.015	0.015	1.00	4.15	0.40	0.40

Physical properties

Density	8.44 g/cm3
Melting range	1290-1350℃

Features: Inconel 625 has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Inconel 625 has good oxidation resistance at temperatures up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
Applications: Chemical process industry and sea water application. Inconel 625 is used in short term applications at temperatures up to 816℃. For long term service, it is best restricted to a maximum of 593℃, because long term exposure above 593℃ will result in significant embrittlement.
Note: Inconel is a registered trademark of the Special Metals Corporation group of companies.

Product	Size Range
Stainless steel seamless tube & pipe	OD: φ1-φ914.4mm WT:0.2-80mm
U-Tube	OD: φ12-φ38mm WT: 0.5-4mm

Steel Types	Typical Steel Codes（AISI）
Austenitic	TP304/304L, TP304H, TP316/316L, TP316H, TP316Ti, TP321, TP321H, TP347/H, TP347HFG, 904L, TP309S,TP310MoLN,TP310H, TP310S, TP317/17L, TP316LMo≥2.5,S31254,904L; etc
Duplex/Super duplex	S31803; S32205; S31500; S32750; S32760
Nickel-Alloy	UNS N08825, N08020, N08028, N08800,N08810,N08811,N04400,N06600,N06601,N06625,N06690,N06022,N10276,N10665,N10673, etc

Standard Type	Standards
EN	EN10216-5; EN10216-2
DIN	DIN 17456; DIN 17458
ASTM	ASTM A312, A213, A269, A511, A789, A790; B163, B423, B407, B668 ASME SA213, SA312, SA789, SA790; SB163, SB423, SB407, SB668
JIS	JIS G3459; G3463
GOST	GOST 9941; GOST 5632
GB	GB/T14975; GB/T14976; GB13296; GB5310; GB9948
