SEAMLESS PIPE Nickel 200/UNS N02200/DIN W. Nr. 2.4060/ DIN W

Nickel 200/UNS N02200/DIN W. Nr. 2.4060/ DIN W. Nr. 2.4066

Form	ASTM
Rod and bar	B 160
Plate, sheet and strip	B 162, B 906
Seamless pipe and tube	B 161, B 829
Welded pipe	B 725, B 775
Welded tube	B 730, B 751
Welding fitting	B 366
Forging	B 564

Chemical composition

%	Ni	Fe	C	Mn	Si	S	Cu
min	99.0
max		0.40	0.15	0.35	0.35	0.010	0.25

Physical properties

Density	8.89 g/cm3
Melting range	1435-1446℃

Features: Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis. Nickel 200 is limited to service at temperatures below 315℃, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curie temperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.
Applications: Useful for applications where maintaining product purity is considered such as handling of caustic alkalis, foods and synthetic fibers; electrical and electronic parts; aerospace and missile components; and chemical storage and shipping tanks

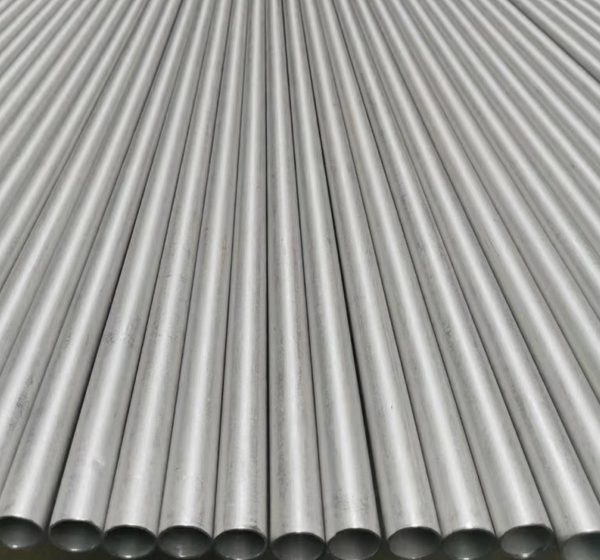

 Seamless Pipe

Product	Size Range
Stainless steel seamless tube & pipe	OD: φ1-φ914.4mm WT:0.2-80mm
U-Tube	OD: φ12-φ38mm WT: 0.5-4mm

Steel Types	Typical Steel Codes（AISI）
Austenitic	TP304/304L, TP304H, TP316/316L, TP316H, TP316Ti, TP321, TP321H, TP347/H, TP347HFG, 904L, TP309S,TP310MoLN,TP310H, TP310S, TP317/17L, TP316LMo≥2.5,S31254,904L; etc
Duplex/Super duplex	S31803; S32205; S31500; S32750; S32760
Nickel-Alloy	UNS N08825, N08020, N08028, N08800,N08810,N08811,N04400,N06600,N06601,N06625,N06690,N06022,N10276,N10665,N10673, etc

Standard Type	Standards
EN	EN10216-5; EN10216-2
DIN	DIN 17456; DIN 17458
ASTM	ASTM A312, A213, A269, A511, A789, A790; B163, B423, B407, B668 ASME SA213, SA312, SA789, SA790; SB163, SB423, SB407, SB668
JIS	JIS G3459; G3463
GOST	GOST 9941; GOST 5632
GB	GB/T14975; GB/T14976; GB13296; GB5310; GB9948
